Manual: DigiBooster Pro Echo Plugin

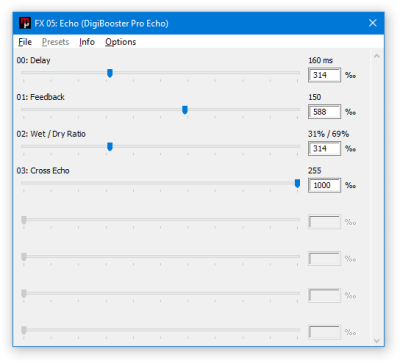

DigiBooster Pro Echo plugin window

The DigiBooster Pro Echo plugin is a specialized echo implementation provided primarily for accurate playback of DBM modules by emulating the echo DSP effect of the DigiBooster Pro tracker.

Parameters

Delay

• Sets the delay time of the echo. Setting the delay to the lowest-possible value results in a delay of 334ms instead, emulating a bug in the original DigiBooster Pro DSP code.
• Range: 2ms to 510ms

Feedback

• Determines how much of the delayed signal is fed back into the delay line to create multiple repetitions. Higher feedback values produce longer echo tails with more repetitions, while lower values create fewer repetitions. Note that the higher the feedback value, the quieter the initial echo will be.
• Range: 0 to 255

Wet / Dry Ratio

• Controls the balance between the original (dry) signal and the delayed (wet) echo effect. At 0% wet, only the original signal is heard. At 100% wet, only the echo is audible. Intermediate values blend the original and echoed signals together.
• Range: 0% wet / 100% dry to 100% wet / 0% dry

Cross Echo

• Controls how much the delayed signal is mixed between the left and right channels. At a value of 0, there is no cross-channel mixing and the echo appears in the same channel as the source. As the value increases, more of the echo signal is sent to the opposite channel and less to the source channel. At maximum (255), the echo completely swaps between channels, creating a ping-pong effect.
• Range: 0 (no mixing) to 255 (echo completely swaps between channels)
